DJPACK Machinery, a vacuum packaging machine manufacturer specialized in the production of vacuum packaging machines and tray sealing machines for over 20 years.

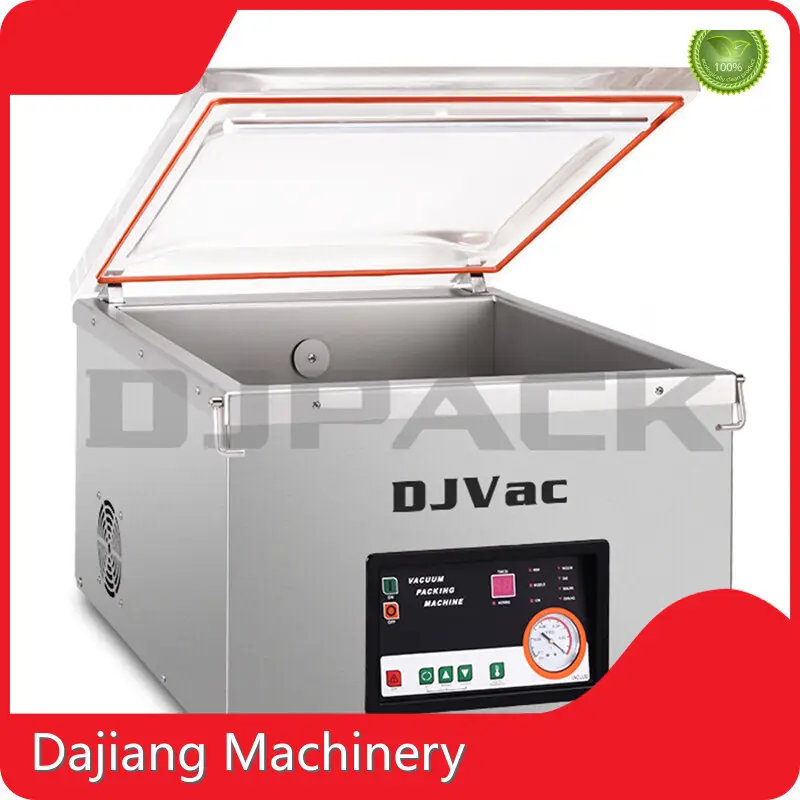

Vacuum Pack Machine for Home Use for Meat Packaging Uppliers
Company Advantages
· Relying on advanced technology, DJPACK vacuum pack machine for home use is finely manufactured according to the lean production method.
· The product will be strictly quality checked and tested before packing.
· After several years of development, Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. now owns a formidable technology power and its products are sold well at home and abroad.
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
|
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
|
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
|
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
|
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
|
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
|
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
|
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
|
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
|
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
|
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
|
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
|
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
|
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
|
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
|
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
|
Free Replacement Parts |
||
|
Parts Name |
Quantity |
Picture |
|
Vacuum Oil |
1 |
|
|
Heater Strip |
1 |
|
|
Withdrawal Tool |
1 |
|
|
Teflon High Temperture Cloth |
1 |
|
|
Oil-can |
1 |
|
|
User Manual |
1 |
|
|
Printing Equipment |
1 |
|
|
Silicone Rubber Gasket |
1 |
|
Company Features
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. owns several production lines to produce vacuum pack machine for home use.
· Adopted by high-quality materials, our vacuum pack machine for home use are very welcome among customers. All our vacuum pack machine for home use are produced to comply with the latest fashion trend. This vacuum pack machine for home use is the most common product but with the highest quality.
· DJPACK will be dedicated to innovating the vacuum pack machine for home use and improving management concepts. Call now!
Product Details
Our vacuum pack machine for home use's outstanding quality is shown in the details.
Application of the Product
vacuum pack machine for home use has a wide range of applications.
Dajiang Machinery has established a professional technical team. They can provide customers with targeted processes and solutions. Based on this, the problems of customers can be better solved.
Enterprise Advantages
Dajiang Machinery introduces and cultivates talents to form an excellent team. They make a great contribution to the construction of a complete management system.
Dajiang Machinery insists on the principle to be active, prompt, and thoughtful. We are dedicated to providing professional and efficient services for customers.
Dajiang Machinery adheres to the business philosophy of 'detail determines quality, integrity continues the market'. Therefore, we always strive for survival by quality, achieve development through reputation and gain benefit by management. We are committed to providing effective product solutions for customers at home and abroad.
After years of exploration and development, Dajiang Machinery accumulates rich industry experience and enjoys a high popularity in the industry.
Dajiang Machinery strives to open up the domestic and international market. Vacuum Packaging Machine,Modified Atmosphere Packaging Machine,Vacuum Skin Packaging Machine,Tray Sealer,Food Wrapping Machine,Shrink Tank are sold well in China and exported to some countries and regions in Europe, America, Africa and Southeast Asia.
