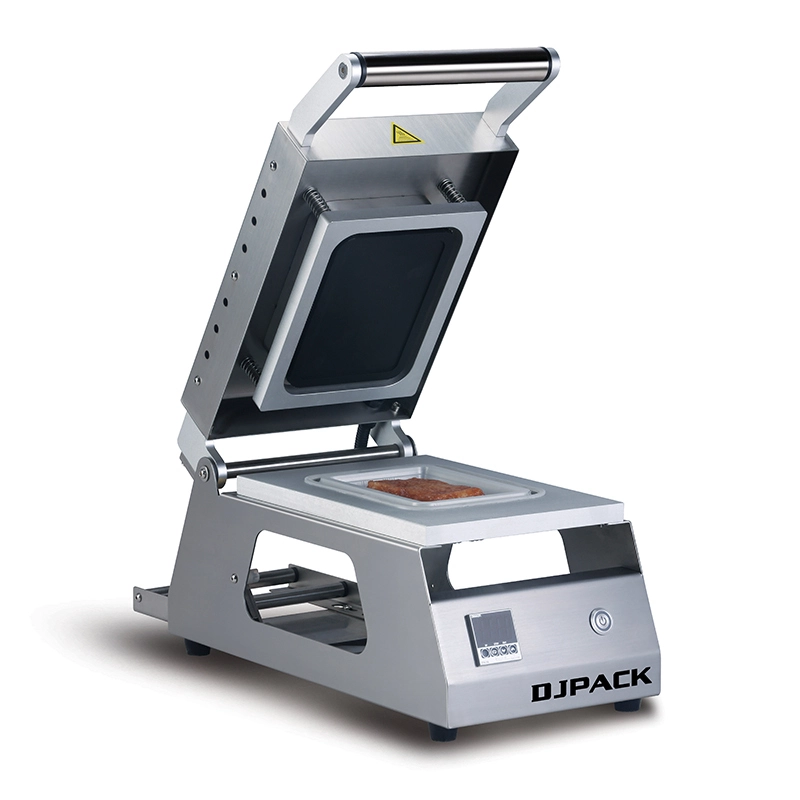

Manual Tray Sealer DS-2 and DS-4
We have two models of ring-cut/circle-cut manual tray sealer(hand sealer), DS-2 and DS-4. They are widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. The advantage of the ring cut machine is that it can trim the film along the tray.
Therefore, users can get a beautiful packaged tray. However, the machine is not easy to change molds. They are simple and economical food packaging machines which are suitable for food shop and small food processing workshop.
Technical characters
1. Stainless steel construction.
2. Tray mould fast replacement.
3. Electronic temperature controller.
4. Friendly and simple in operation for user.
5. Mould in customized dimension is acceptable to be made according to your own tray.
Technology specifications
|
Model |
DS-2 |
DS-4 |
|
Max. Tray Dimension(mm) |
240×150×100 |
260×190×100 |
|
Max. Width of Film(mm) |
180 |
220 |
|
Max. Diameter of Film(mm) |
160 |
160 |
|
Packing Speed(cycle/min) |
6-8 |
6-8 |
|
Electrical Requirement(v/hz) |
220/50 110/60 |
220/50 110/60 |
|
Consume Power(kw) |
0.7 |
0.7 |
|
N.W(kg) |
18 |
20 |
|
G.W(kg) |
21 |
23 |
|
Machine Dimension(mm) |
525 ×256× 250 |
545 ×296× 250 |
|
Shipping Dimension(mm) |
610 ×320× 325 |
630 ×350× 325 |
