DJPACK Machinery, a vacuum packaging machine manufacturer specialized in the production of vacuum packaging machines and tray sealing machines for over 20 years.

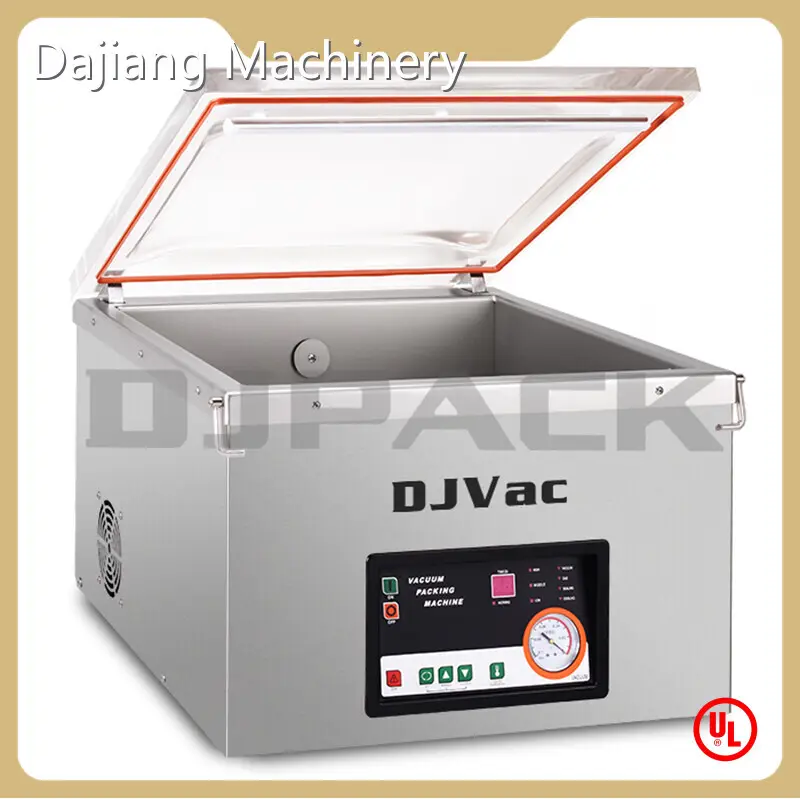

Vacuum and Seal Machine - for Meat Packaging - DJPACK
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
|
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
|
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
|
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
|
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
|
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
|
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
|
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
|
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
|
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
|
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
|
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
|
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
|
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
|
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
|
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
|
Free Replacement Parts |
||
|
Parts Name |
Quantity |
Picture |
|
Vacuum Oil |
1 |
|
|
Heater Strip |
1 |
|
|
Withdrawal Tool |
1 |
|
|
Teflon High Temperture Cloth |
1 |
|
|
Oil-can |
1 |
|
|
User Manual |
1 |
|
|
Printing Equipment |
1 |
|
|
Silicone Rubber Gasket |
1 |
|
Company Advantages
· DJPACK vacuum and seal machine is produced by using the best raw material and sophisticated technology in complete compliance with the set industry standards.
· The product is featured by fine finish, durability and optimal performance.
· The product is widely sought after in the industry and has served many global customers.
Company Features
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd., with years of designing and manufacturing experience, is one of the leading professional suppliers of vacuum and seal machine.
· We have set up a professional marketing team. With years of market exploration, they are able to respond rapidly to vacuum and seal machine market trends and effectively analyze the customers' needs.
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. believes a good supplier should be established on mutual understanding and mutual assistance. Call!
Application of the Product
Dajiang Machinery's vacuum and seal machine can be used in many industries.
Dajiang Machinery has been engaged in the production of Vacuum Packaging Machine,Modified Atmosphere Packaging Machine,Vacuum Skin Packaging Machine,Tray Sealer,Food Wrapping Machine,Shrink Tank for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
