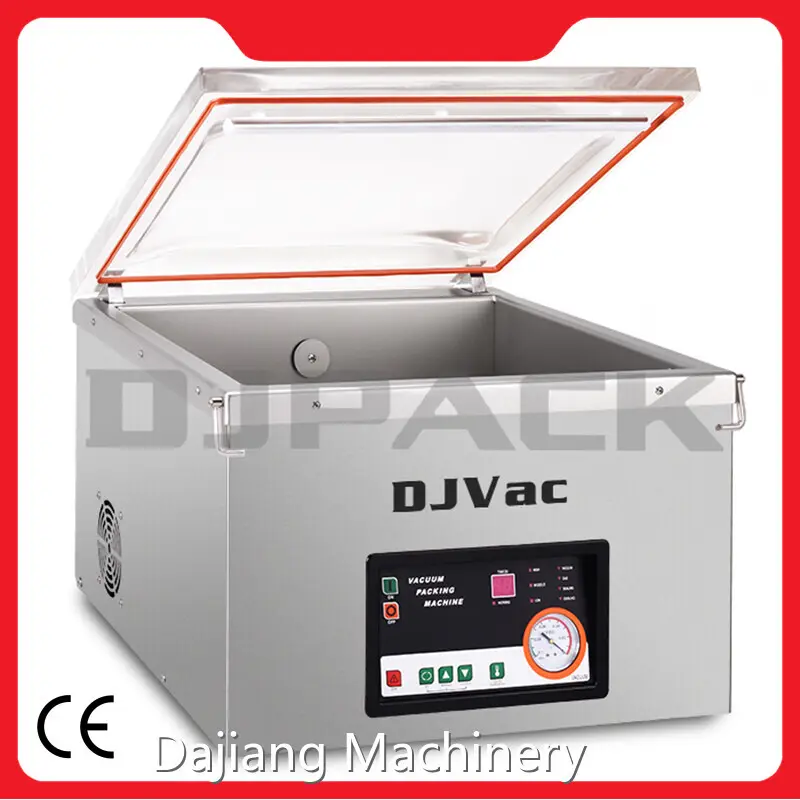

Product details of the vacuum pack machine for food
Product Information
DJPACK vacuum pack machine for food is fabricated adopting advanced production technology and smooth process. The extensive infrastructural facility that is properly equipped with all the latest amenities that help this product be of the premium quality. Thanks to the help of our professional service team, DJPACK has received more popularity around the world.
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
Free Replacement Parts |
||
Parts Name |
Quantity |
Picture |
Vacuum Oil |
1 |
|
Heater Strip |
1 |
|
Withdrawal Tool |
1 |
|
Teflon High Temperture Cloth |
1 |
|
Oil-can |
1 |
|
User Manual |
1 |
|
Printing Equipment |
1 |
|
Silicone Rubber Gasket |
1 |
|
Company Advantage
• Dajiang Machinery runs the business in good faith and strives to provide professional services for customers.
• Dajiang Machinery has been through years of wind and rain since the establishment. Compared with our peers, we have more mature production technology to provide customers with better products and services.
• Our company adheres to the combination of domestic sales and foreign trade, and the product sales range covers the whole world.
For more information on Vacuum Packaging Machine,Modified Atmosphere Packaging Machine,Vacuum Skin Packaging Machine,Tray Sealer,Food Wrapping Machine,Shrink Tank, please contact Dajiang Machinery or leave your contact information.
