DJPACK Machinery, a vacuum packaging machine manufacturer specialized in the production of vacuum packaging machines and tray sealing machines for over 20 years.

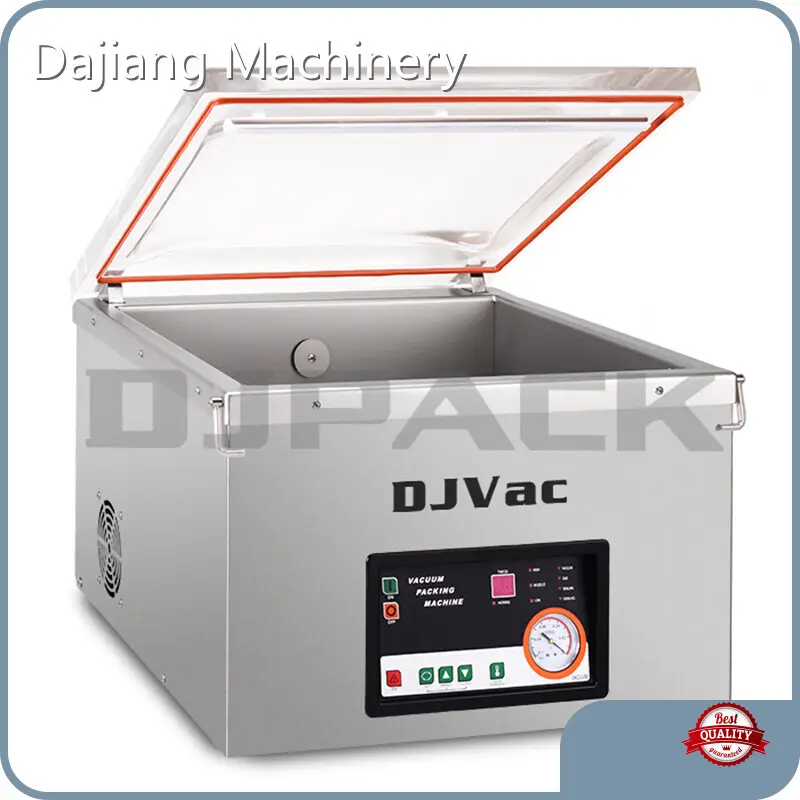

Latest Table Top Vacuum Packing Machine Table Top Vacuum Packing Machine Company
Company Advantages
· The raw materials of DJPACK table top vacuum packing machine are paid great attention during the incoming material inspections.
· This product has been certified by an authoritative third party, including performance, durability and reliability.
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. sets a good example for table top vacuum packing machine industry in terms of quality.
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
|
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
|
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
|
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
|
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
|
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
|
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
|
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
|
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
|
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
|
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
|
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
|
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
|
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
|
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
|
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
|
Free Replacement Parts |
||
|
Parts Name |
Quantity |
Picture |
|
Vacuum Oil |
1 |
|
|
Heater Strip |
1 |
|
|
Withdrawal Tool |
1 |
|
|
Teflon High Temperture Cloth |
1 |
|
|
Oil-can |
1 |
|
|
User Manual |
1 |
|
|
Printing Equipment |
1 |
|
|
Silicone Rubber Gasket |
1 |
|
Company Features
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. is a high-tech enterprise with strong R&D strength and modern operation and management concept.
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. is equipped with advanced production equipment for table top vacuum packing machine. Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. has installed advanced production equipment for table top vacuum packing machine.
· We focus on social development while developing ourself. We practice social responsibility through donating money, products, or services to some underdeveloped areas. Please contact.
Product Details
More detailed information about table top vacuum packing machine will be shown below for you.
Product Comparison
Compared with similar products, our table top vacuum packing machine's outstanding advantages are as follows.
Enterprise Advantages
Dajiang Machinery thinks highly of talents management and sci-tech innovation. Our talents team is great technical capabilities and strong management abilities.
Dajiang Machinery runs the business in good faith and strives to provide thoughtful and quality services for customers and to achieve mutual benefit with them.
Dajiang Machinery forges ahead with honesty and integrity. By complying with the corporate spirit, we intend to be sincere, responsible, pragmatic and innovative. We take a proactive approach to assume social responsibility. Making every product and serving every customer with attention is our constant pursuit. The win-win situation is what we always strive for.
Dajiang Machinery was founded in After years' development from puniness to mightiness, we have grown into a leader in the industry .
Dajiang Machinery's products are sold to both domestic and foreign markets
