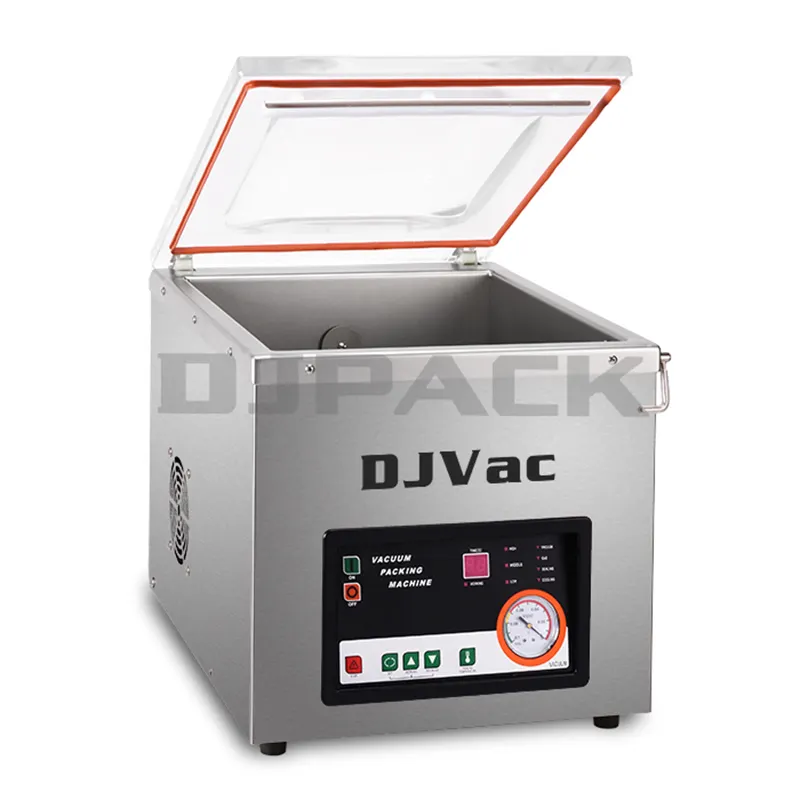

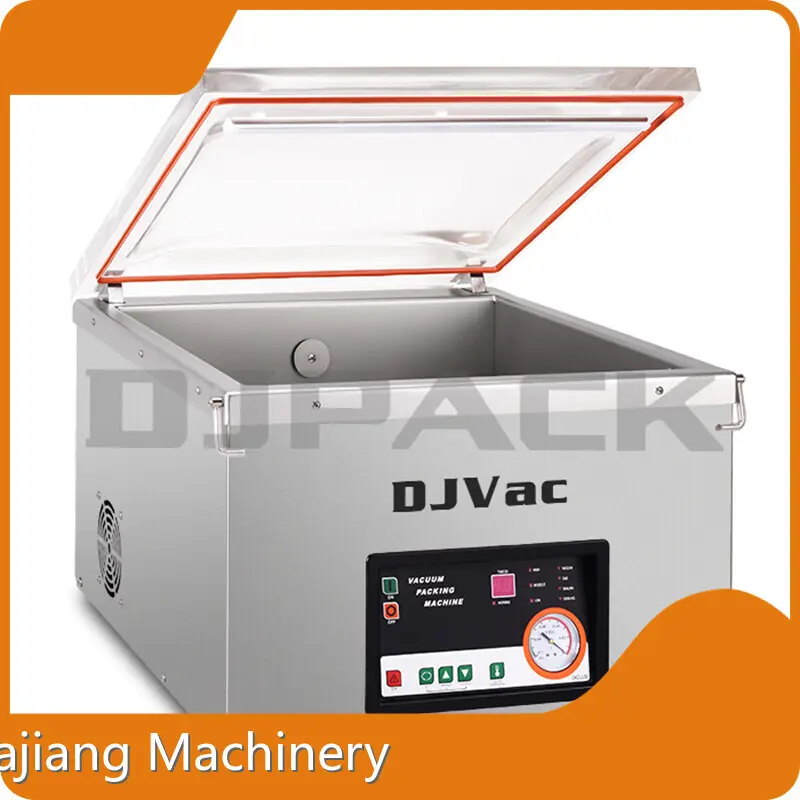

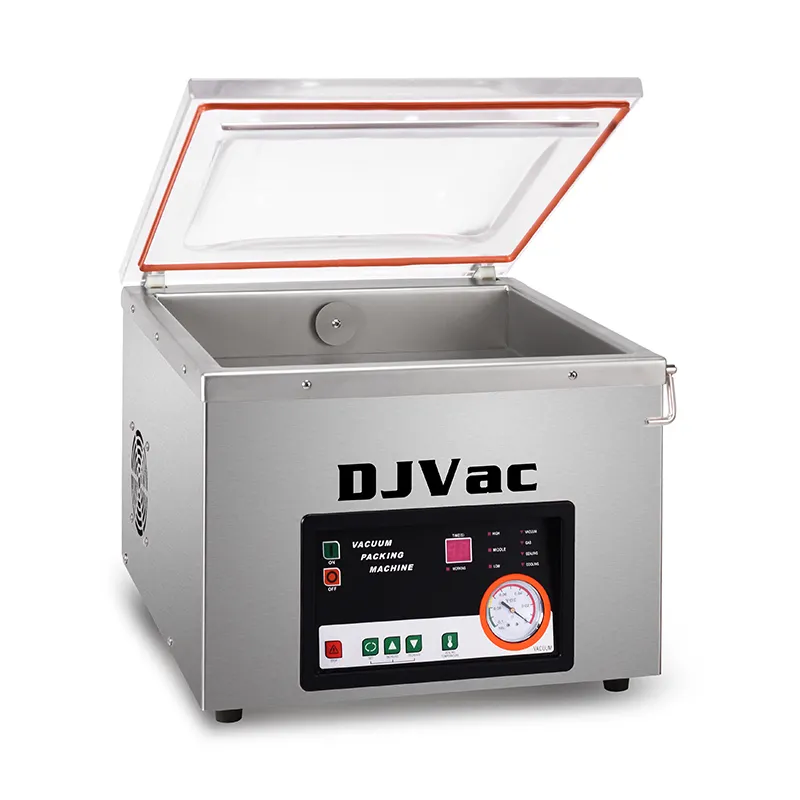

High-qualityvacuum Machine for Packing for Meat Packaging
Company Advantages
· DJPACK vacuum machine for packing is designed in accordance with the industrial conditions.
· Its quality is guaranteed by a team of people following the relative certificates.
· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd.'s customer service team is skilled, empathetic, and engaged.
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
|
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
|
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
|
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
|
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
|
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
|
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
|
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
|
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
|
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
|
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
|
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
|
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
|
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
|
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
|
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
|
Free Replacement Parts |
||
|
Parts Name |
Quantity |
Picture |
|
Vacuum Oil |
1 |
|
|
Heater Strip |
1 |
|
|
Withdrawal Tool |
1 |
|
|
Teflon High Temperture Cloth |
1 |
|
|
Oil-can |
1 |
|
|
User Manual |
1 |
|
|
Printing Equipment |
1 |
|
|
Silicone Rubber Gasket |
1 |
|
