DJPACK Machinery, a vacuum packaging machine manufacturer specialized in the production of vacuum packaging machines and tray sealing machines for over 20 years.

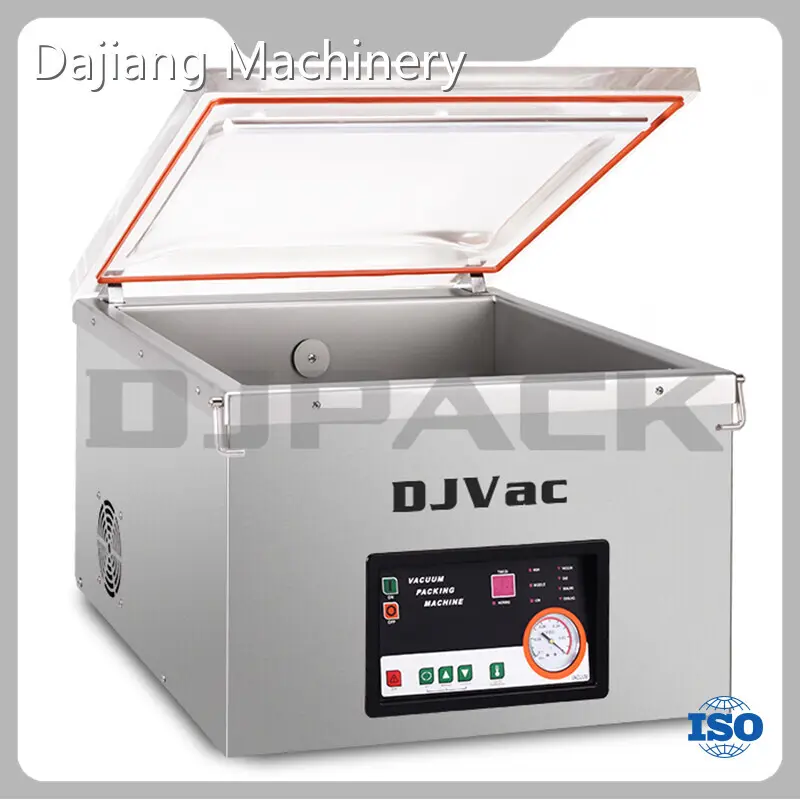

Custom Machine Vacuum Packing for Meat Packaging
Product details of the machine vacuum packing
Quick Detail
Our distinguished design makes machine vacuum packing more attractive. machine vacuum packing has no pollution to environment which is more eco-friendly. Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. better understands the needs of users and provide quality services.
Product Description
The main differences between Dajiang Machinery's machine vacuum packing and similar products are as follows.
Technical characters
1. Control System: The PLC control panel provides several control modes for users’ selection.
2. Material of Main Structure: 304 stainless steel.
3. Hines on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
4. “V” Lid Gasket: The “V” shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
6. Gas flushing is optional.
Technology specifications
|
Model |
DZ-260PD |
DZ-300PJ |
DZ-350M |
DZ-350MS |
DZ-390T |
DZ-400/2F |
|
Machine Dimension(mm) |
330×480×375 |
370×480×450 |
560×425×400 |
560×425×490 |
610×470×495 |
555×475×410 |
|
Chamber Dimension(mm) |
280×385×50(100) |
320×370×135(185) |
370×450×70(120) |
370×450×170(220) |
500×4100×110(170) |
420×440×75(125) |
|
Sealer Dimension(mm) |
260 |
300*8mm(width) |
350*8mm(width) |
350*8mm(width) |
390*8mm(width) |
420*8mm(width) ×2 |
|
Pump Capacity(m3/h ) |
10 |
10 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.37 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Voltage(V) |
220/110 |
220/110 |
220 |
220 |
220 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50 |
50 |
50 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
39 |
45 |
64 |
68 |
77 |
68 |
|
N.W(kg) |
33 |
39 |
54 |
58 |
65 |
59 |
|
Shipping Dimensions(mm) |
410×560×410 |
560×420×490 |
610×490×530 |
610×490×530 |
670×530×550 |
610×530×460 |
|
Model |
DZ-400G |
DZ-430PT/2 |
DZ-435PJ |
DZ-450A |
DZ-500T |
|
Machine Dimension(mm) |
555×475×485 |
560×425×400 |
510×460×440 |
520×560×490 |
590×675×510 |
|
Chamber Dimension(mm) |
420×440×150(200) |
370×450×50(100) |
460×350×110(160) |
460×450×170(220) |
520×540×150(200) |
|
Sealer Dimension(mm) |
400*8mm(width) |
430*8mm(width) ×2 |
440*8mm(width) |
440 |
500 |
|
Pump Capacity(m3/h ) |
20 |
20 |
20 |
20 |
20 |
|
Power Consumption(kw) |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
0.75/0.9 |
|
Voltage(V) |
220/110 |
220/110 |
220/110 |
220/110 |
220 |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50 |
|
Production Cycle(times/min) |
1-2 |
1-2 |
1-2 |
1-2 |
1-2 |
|
G.W(kg) |
71 |
68 |
55 |
74 |
96 |
|
N.W(kg) |
60 |
57 |
44 |
64 |
87 |
|
Shipping Dimensions(mm) |
610×570×540 |
610×490×435 |
570×530×490 |
610×570×540 |
730×650×660 |
|
Free Replacement Parts |
||
|
Parts Name |
Quantity |
Picture |
|
Vacuum Oil |
1 |
|
|
Heater Strip |
1 |
|
|
Withdrawal Tool |
1 |
|
|
Teflon High Temperture Cloth |
1 |
|
|
Oil-can |
1 |
|
|
User Manual |
1 |
|
|
Printing Equipment |
1 |
|
|
Silicone Rubber Gasket |
1 |
|
Company Information
Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd., located in wen zhou, is mainly engaged in the production, processing, and sales of Vacuum Packaging Machine,Modified Atmosphere Packaging Machine,Vacuum Skin Packaging Machine,Tray Sealer,Food Wrapping Machine,Shrink Tank. Our company follows the tenet of serving consumers. While making products, we strive to explore a humanized and diversified service model. With this, we can meet all-round, all-process, multi-level and personalized service requirements of customers. If you need to buy our products, welcome to contact us!
