Custom Vacuum Packaging Machine for Meat Packaging

Technical characters

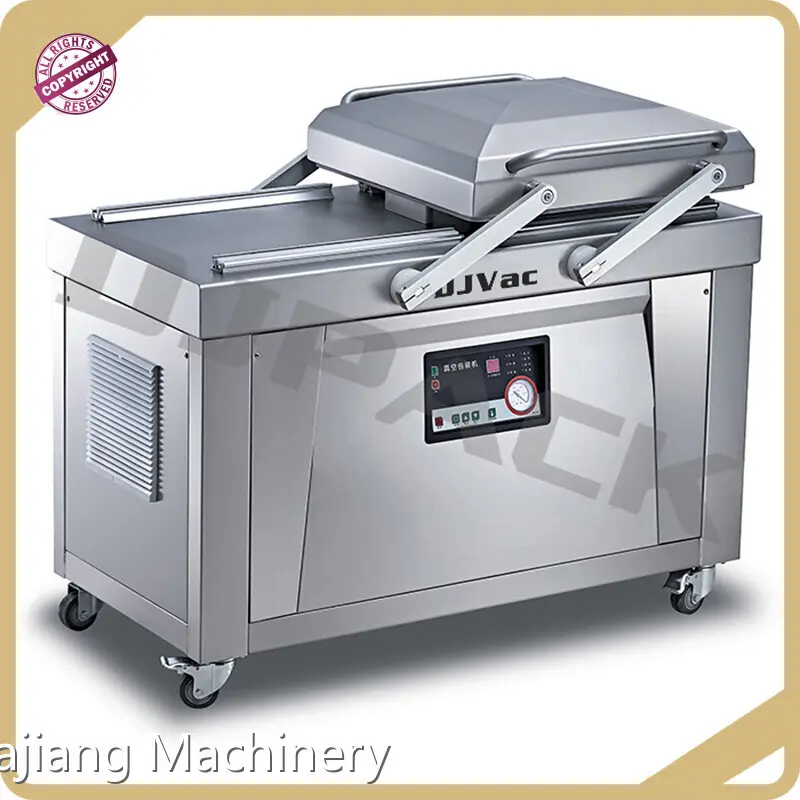

There are two styles of our double chamber vacuum packaging machine, one is the common manual swing lid, and the second is the electric swing lid.   At present, the main popular type in the market is the manual type.   Compared to the manual type, the electric type can save the time of placing the lid.   However, we have designed it so easy to manually swing the lid and even move it to the desired position with just one finger

In addition to the basic functions, machines can add the bag trimming function and the gas flushing function.

As for voltage, we will set the voltage of the machine according to your local voltage

Please check the size of the bag and the size of the product you are using before choosing the machine.

Technology specifications

Model	DZ-500-2S	DZ-600-2S	DZ-700-2S	DZ-800-2S	DZ-950-2S
Machine Dimension(mm)	1290×685×960	1510×685×960	1700×755×970	1910×1025×1090	2240×945×1040
Chamber Dimension(mm)	610×550×160(×2)	720×550×160(×2)	850×660×210(×2)	960×930×280(×2)	1110×840×190(×2)
Sealer Dimension(mm)	500×4	600×4	700×4	800×4	950×4
Pump Capacity(m3/h )	20×2 (40/100 is optional)	20×2 (40/100 is optional)	100	200 (300 is optional)	200 (300 is optional)
Power Consumption(kw)	0.75×2	1.1	2.2	5.5	5.5
Voltage(V)	220/110	3P 380	380	380	3P 380 V 50Hz
Frequency(Hz)	50/60	50/60	60	50	1-2
Production Cycle(times/min)	1-2	1-2	1-2	1-2	662
G.W(kg)	291	336	411	757	551
N.W(kg)	268	285	322	650	2320×1050×1220
Shipping Dimensions(mm)	1340×760×1170	1550×770×1160	1750×830×1300	1980×1090×1300	DZ-950-2S

DZ-950 2S (2)

DZ-800-2S

DZ-700-2S

DZ-600-2S

DZ-500-2S

Company Advantages

· All specifications of our vacuum packaging machine are available.

· The quality and performance of the product are in line with the industry standards.

· To the taste of overseas markets, this product receives well-deserved recognition.

Company Features

· Wenzhou Dajiang Vacuum Packaging Machinery Co. Ltd. is an foreign owned enterprise primarily manufacturing high quality vacuum packaging machine.

· We have built up a professional sales team. They are responsible for the development and performance of all sales activities. Through our dedicated sales team, we can remain viable and profitable.

· Trying to supply with the best service and finest vacuum packaging machine has been always DJPACK doing. Welcome to visit our factory!

Application of the Product

Dajiang Machinery's vacuum packaging machine is widely used in the industry and is widely recognized by customers.

Dajiang Machinery is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
